Features :

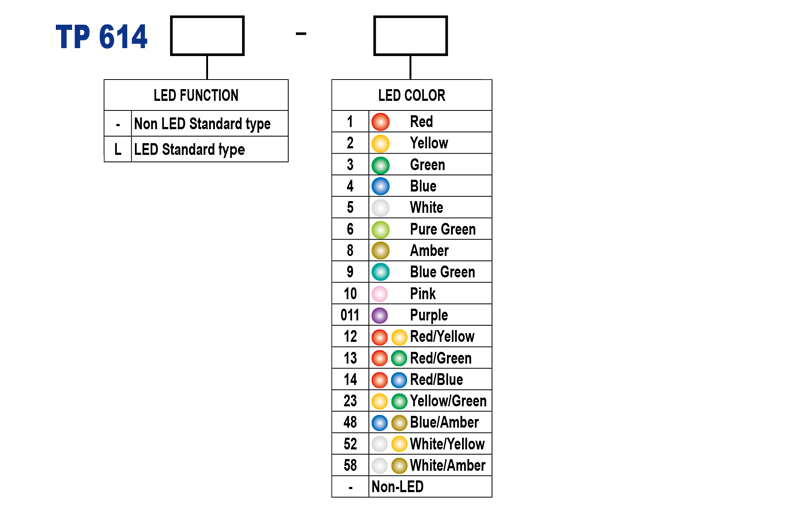

•Several LED colors options.
Applications :
Operating switches in all types of electronic equipment such as audio apparatus, office equipment, communications apparatus, TV sets, VCRs,etc.
TP614 系列
Specifications
| Rating | 0.1A 30VDC |
|---|---|
| Insulation Resistance | 100MΩ Min (at 500 VDC) |
| Dielectric Strength | AC 250V (50/60 Hz for 1 minute) |
| Contact Resistance | 100mΩ Max. (Initial) |
| Electrically Life | 10,000 Cycles Min |
| Ambient Temperature | -16°C~ +60°C |
| Lock Stroke | 1.0 ± 0.2mm |
| Full Stroke | 1.9 ± 0.2mm |
| Operating Force | 180 ± 50gf |
LED Specifications
| Color | VR | IF | Recommended Operating Current |
VF | |
|---|---|---|---|---|---|
| Nor | Max | ||||
| Red | DC 5V | 20mA | 20mA | 1.7V | 2.4V |
| Green | DC 5V | 20mA | 20mA | 1.9V | 2.4V |
| Yellow | DC 5V | 20mA | 20mA | 1.9V | 2.4V |
| Blue | DC 5V | 20mA | 20mA | 3.0V | 3.6V |
| White | DC 5V | 20mA | 20mA | 3.0V | 3.6V |
For the specification about the other LEDs, please contact with sales department
