品質穩定，具有高可靠度
壽命長，良好的操作力
觸感佳，多種動作柄型式，可適用各種工作場所
VT 系列微動開關
| VT16 囗 囗 囗 1 2 3 |
|||
|---|---|---|---|
| 1. ACTUATOR TYPES | |||
| 00 : Pin plunger 01 : Short hinge lever 02 : Hinge lever 03 : Long hinge lever 04 : Simulated roller lever 05 : Short hinge roller lever 06 : Hinge roller lever |
|||
| 2. CONTACT FORM & COMMON TERMINAL POSITION | |||
| Contact Form | 1 : SPDT | 2 : SPST-NC | 3 : SPST-NO |
| Common Terminal Position |  |
 |
 |
| 3. Terminal Type | |||

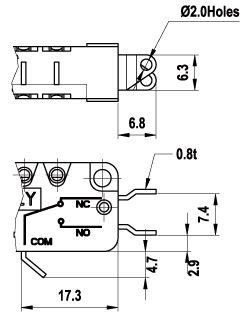

| Solder Terminal (-A) |

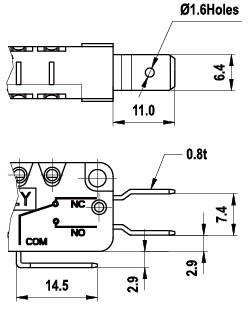

Quick-connect Terminal 6.4 x 0.8 (-C) |

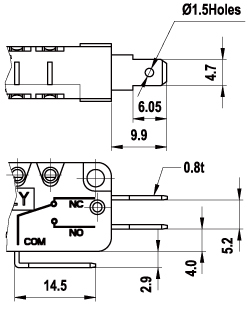

Quick-connect Terminal 4.8 x 0.8 (-C2) |
|
 |
 |
 |
|
| Item | Standard | |
|---|---|---|
| Rating | 14(4)A 250V AC | 15A 250V AC |
| Conforming to standards | UL 61058-1 | UL 1054 |
| Contact Resistance | 15 mΩ max. (initial) | |
| Insulation Resistance | 100MΩ min. (at 500V DC) | |
| Dielectric Strength | Between terminals of same polarity AC 1000V (50/60Hz for 1minute) Between each terminal and non-current-carrying rind parts AC 2000V ( 50/60Hz for 1 minute) |
|
| Electrically Life | 100,000 cycles | |
| Mechanically Life | 1,000,000 cycles | |
