4 Pole type are available with switching current of 10A.
Low coil power consumption with high response time.
Call Us Now
+ 886 4 2249 3837
Send Mail Us
info@yl-trading.com
4 Pole type are available with switching current of 10A.
Low coil power consumption with high response time.

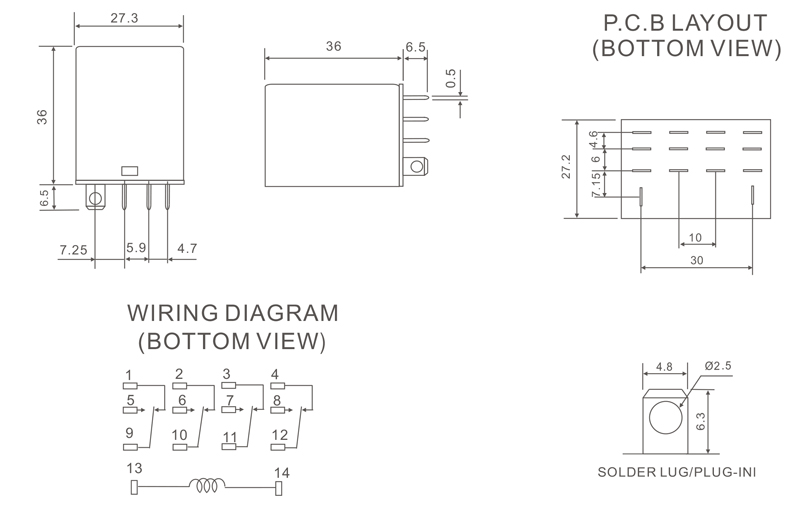

LY4 N ─ 12 D S 1 2 3 4 5 |
||
---|---|---|
1. Type | 2. LED | 3. Coil Nominal Voltage |
LY4 ( 4PDT ) | Nil : Without LED N : With LED |
|
4. Coil Nominal Voltage Type | 5. Terminal Type | |
D : DC A : AC |
S : Solder Lug / Plug-In Terminal P : PCB Termina |
COIL DATA(at 25 ) | |||
---|---|---|---|
AC 1.8~2.5VA | |||
Coil Nominal Voltage (50/60Hz) | Resistance Tol.±10% (Ohms) | Maximum Pick Up Voltage (V) | Minimum Drop Out Voltage (V) |
12 | 20 | 9.6 | 3.6 |
24 | 78 | 19.2 | 7.2 |
48 | 320 | 38.4 | 14.4 |
110 | 1600 | 88.0 | 33.0 |
220/240 | 6700/9000 | 176/192 | 66/72 |
DC 1.4W~1.5W | ||||
---|---|---|---|---|
Coil Nominal Voltage (VDC) | Resistance Tol.±10% (Ohms) | Nominal Current (mA) | Maximum Pick Up Voltage (V) | Minimum Drop Out Voltage (V) |
6 | 25 | 240.0 | 4.8 | 0.6 |
12 | 100 | 120.0 | 9.6 | 1.2 |
24 | 350 | 68.6 | 19.2 | 2.4 |
48 | 1600 | 30.0 | 39.4 | 4.8 |
110 | 3900 | 15.9 | 88.0 | 11.0 |
CONTACT RATING | |||
---|---|---|---|
LY4 TYPE | Resistive (Cos.θ= 1) | AC 250V/28V | 10A |
Insulation Resistance | 500 MΩ Min. (DC 500V) |
---|---|
Dielectric Strength | 1,000 VAC, 50/60Hz between contact. 1,500 VAC, 50/60Hz between all elements. |
Contact Material | Ag Alloy. |
Contact Resistance | 100 milliohms max. ( initial value ) |
Shock Resistance | Malfunction: 10G(11ms) ; Destructive: 100G(6ms) |
Vibration Resistance | Malfunction: 10 to 55 Hz. at Double Amplitude of 1.5 mm Destructive: 10 to 55 Hz. at Double Amplitude of 1.5 mm |
Operation Time | 25 ms max. |
Release Time | 25 ms max. |
Temperature Range | - 40°C ~ + 55°C |
Expected Life | With operation rate 30/min. Mechanical - 10,000,000 operations min. Electrical - 100,000 operations min. at rated load. |
Weight | Ly4 Type: 70 grams |
