Features :
• SPST, Tactile feeling, illuminated 12 x 12 mm Tact.
Applications :
Operating switches in all types of electronic equipment such as audio apparatus, office equipment , communications apparatus, TV sets, VCRs, etc.

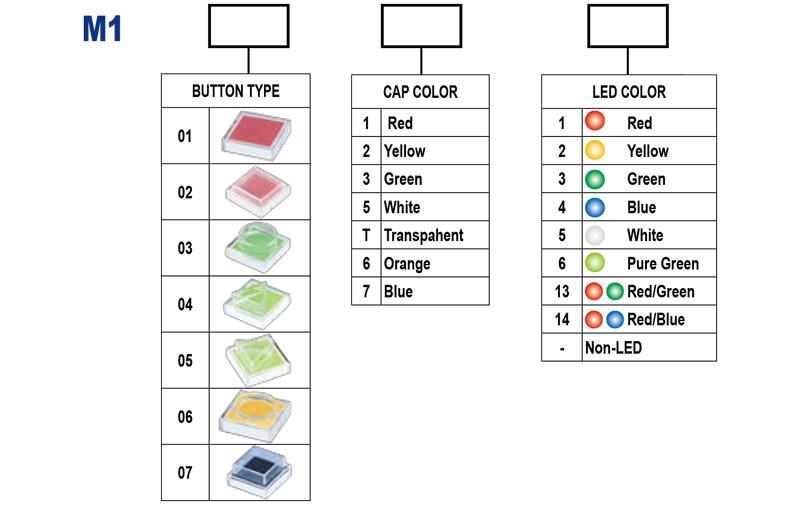

M1 系列
Specifications
| Rating | 50mA 12VDC |
|---|---|
| Insulation Resistance | 100MΩ Min (at 100 VDC) |
| Dielectric Strength | AC 250V (50/60 Hz for 1 minute) |
| Contact Resistance | 100mΩ Max. (Initial) |
| Electrically Life | 100,000 Cycles Min |
| Ambient Temperature | -10°C~ +60°C |
| Operating Force | 250 ± 100gf |
LED Specifications
| Color | VR | IF | Recommended Operating Current |
VF | |
|---|---|---|---|---|---|
| Nor | Max | ||||
| Red | DC 5V | 20mA | 20mA | 1.8V | 2.6V |
| Green | DC 5V | 20mA | 20mA | 2.2V | 2.6V |
| Yellow | DC 5V | 20mA | 20mA | 2.2V | 2.6V |
| Blue | DC 5V | 20mA | 20mA | 3.5V | 4.0V |
| White | DC 5V | 20mA | 20mA | 3.5V | 4.0V |
For the specification about the other LEDs, please contact with sales department
